QD & CRC Features

• Exclusive Franklin Electric QD Relay
• Suitable for outdoor mounting
• Capacitor Start
• Run Capacitor (Only CRC Boxes)
• UL listed for US and Canada (60 Hz models)

Standard, Deluxe & XL Deluxe Features

• Heavy duty box-type terminals accept up to AWG #2 wire
• External access to overload resets
• Multiple-size knockouts
• User-friendly connection diagrams
• Easy access to grounding lugs

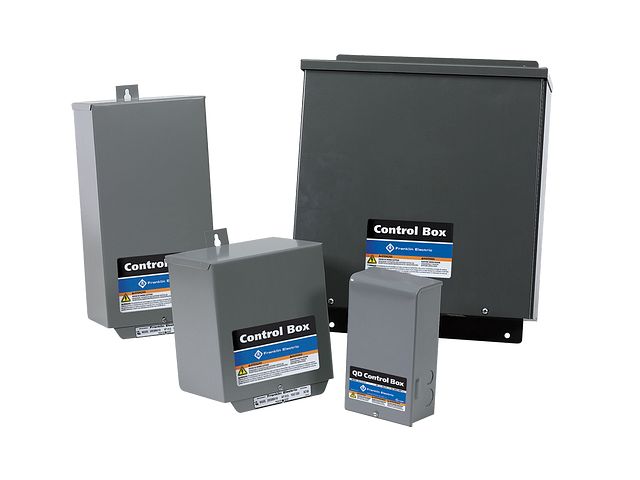

Franklin Electric offers Submersible Motor Control Boxes that are designed to provide electrical control and protection for submersible motors. These control boxes are an integral part of submersible motor systems and play a crucial role in the safe and efficient operation of the motors. Here are some key features and characteristics of Franklin Electric Submersible Motor Control Boxes:

• 1. Motor Control and Protection: The Submersible Motor Control Boxes are specifically designed to control and protect submersible motors. They provide functions such as motor starting, stopping, and motor overload protection. These control boxes help ensure safe and reliable operation of the submersible motor system.
• 2. Voltage and Phase Compatibility: Franklin Electric offers control boxes suitable for both single-phase and three-phase submersible motors. The control boxes are available in different voltage ratings to match the specific motor requirements.
• 3. Control Box Construction: The control boxes are typically constructed with high-quality materials and are designed to be rugged and durable. They are built to withstand harsh environmental conditions and provide long-lasting performance.
• 4. Electrical Components: The control boxes include various electrical components such as contactors, relays, capacitors, and motor overload protection devices. These components are selected and integrated into the control box to ensure proper motor control, protection, and electrical performance.
• 5. Circuit Protection: The control boxes feature built-in circuit protection mechanisms such as fuses or circuit breakers. These protection devices help prevent damage to the control box and motor in the event of electrical faults or overcurrent conditions.
• 6. Wiring Terminals and Connections: Franklin Electric control boxes are designed with user-friendly wiring terminals and connections, allowing for easy and secure installation. The wiring terminals are typically labeled and color-coded to simplify the wiring process.
• 7. Application-Specific Control Boxes: Franklin Electric offers control boxes tailored for specific applications, including residential, commercial, agricultural, and industrial applications. These application-specific control boxes may have additional features or functions to meet the specific requirements of the intended application.
• 8. Compliance and Certifications: The control boxes comply with relevant industry standards and regulations to ensure safety and performance. They may carry certifications such as UL (Underwriters Laboratories) or CSA (Canadian Standards Association) certifications, providing assurance of quality and compliance.
• 9. Compatibility with Franklin Electric Motors: The control boxes are designed to work seamlessly with Franklin Electric submersible motors. They are engineered to provide optimal control and protection for Franklin Electric motors, ensuring compatibility and efficient operation.
