Inline multi-stage pumps, also known as vertical multi-stage pumps, are a type of centrifugal pump designed for applications that require high-pressure water supply. These pumps consist of multiple impellers stacked together in a single casing, allowing them to generate higher pressure than single-stage pumps.
Sample Series and their specifications
| CR, CRE, CRI, CRIE, CRN, CRNE, CRT, CRTE | CR | CRE | CRFlex | CRI | CRT | CRTE | |
| Commercial air conditioning | Y | Y | Y | Y | Y | ||
| Commercial heating | Y | Y | |||||
| Commercial water pressure boosting | Y | ||||||
| District cooling | Y | ||||||
| District heating | Y | Y | |||||
| Drinking water treatment | Y | ||||||
| Irrigation | Y | Y | Y | Y | Y | Y | |
| Industrial cooling | Y | ||||||
| Desalination | Y | ||||||
| Industrial heating | Y | Y | Y | Y | Y | Y | |
| Machining | Y | ||||||
| Process liquids transfer | Y | ||||||
| Industrial process water treatment | Y | ||||||
| Industrial cleaning process | Y | ||||||
| Industrial water supply & transfer | Y | Y | Y | Y | Y | ||
| Industrial wastewater treatment & reuse | Y | ||||||
| Solar water solutions | Y | Y | |||||
| Surface water intake | Y | ||||||
| Community water supply | Y | Y | |||||
| Water distribution | Y | ||||||
| Max flow | 402 m³/h | 402 m³/h | 195 m³/h | 36 m³/h | 26 m³/h | 25 m³/h | |
| Head max | 493 m | 362 m | 254 m | 252 m | 246 m | 246 m | |
| Liquid temperature | -40 .. 150 °C | -30 .. 120 °C | -30 .. 120 °C | -20 .. 120 °C | -20 .. 120 °C | -25 .. 120 °C | -20 .. 120 °C |
| p max | 50 bar | 40 bar | 30 bar | 25 bar | 25 bar | 25 bar | 25 bar |

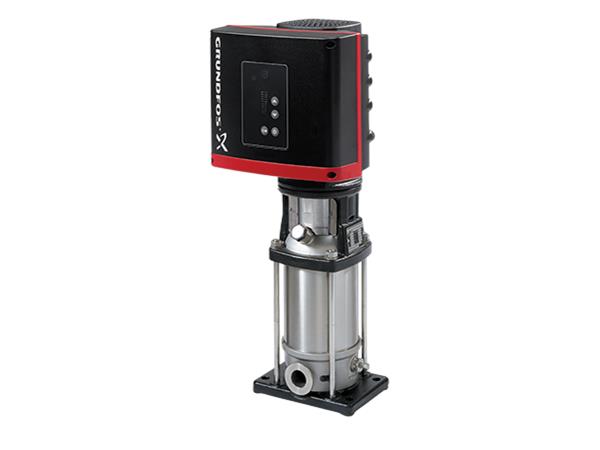

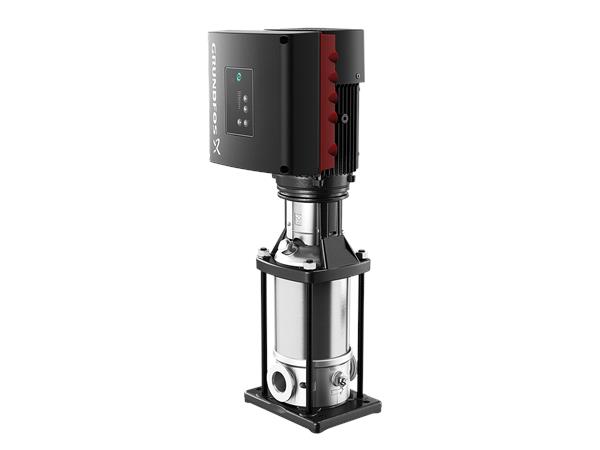

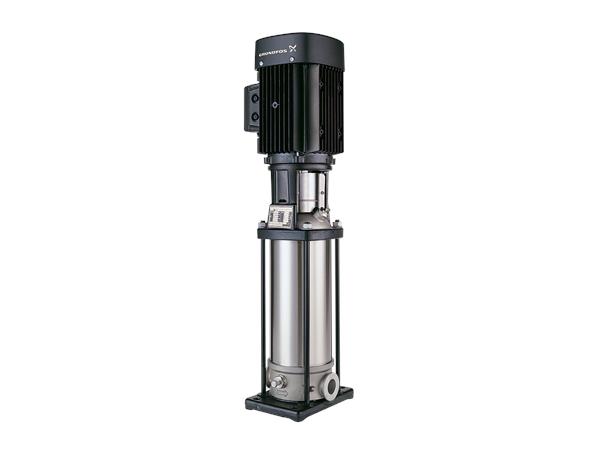

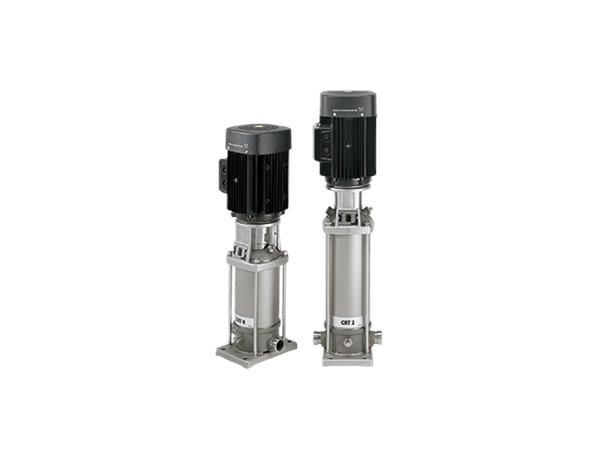

| Description | Vertical, multistage centrifugal pump with suction and discharge ports on the same level. | Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron – all other wetted parts are in stainless steel (EN 1.4301) | Vertical, multistage centrifugal pump with integrated frequency converter. The pump head and base are in cast iron – all other wetted parts are in stainless steel (EN 1.4301) | Vertical multistage pumps with Renewable MGFlex motor for solar, wind and AC powersource. Runs on both AC and DC voltage | Vertical, multistage centrifugal pump with suction and discharge ports on same the level. Pump materials in contact with the liquid are in stainless steel (EN 1.4301) | Vertical, multistage centrifugal pump with suction and discharge ports on same the level. Materials in contact with the liquid are in Titanium. Titanium has an exceptional resistance to a wide range of acids, alkalis, seawater and industrial chemicals | Vertical, multistage centrifugal pump with integrated frequency converter. Materials in contact with the liquid are in Titanium has an exceptional resistance to a wide range of acids, alkalis, seawater and industrial chemicals |
